MIMO Vibration Controller

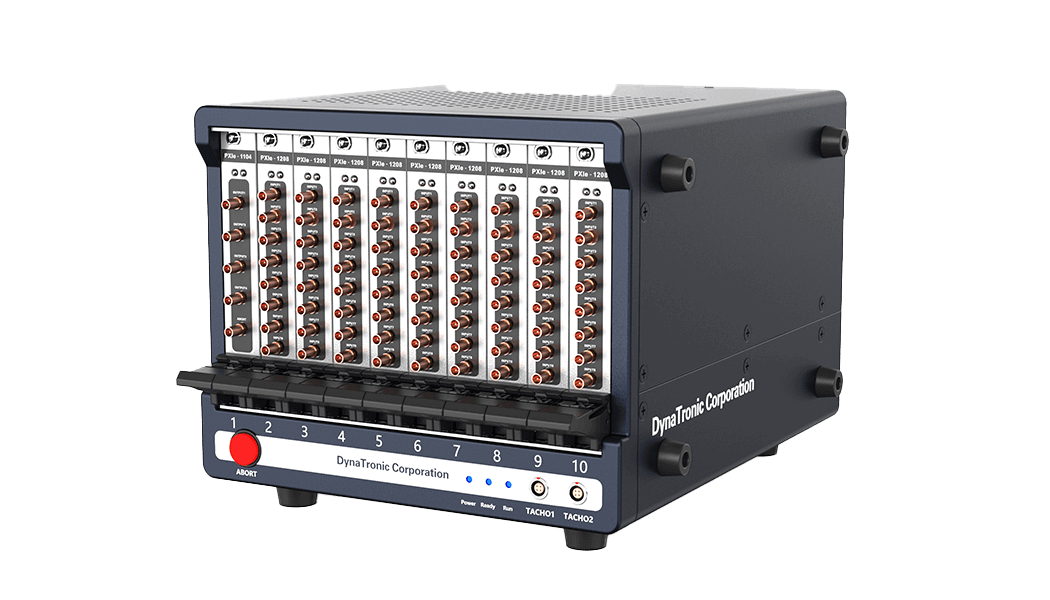

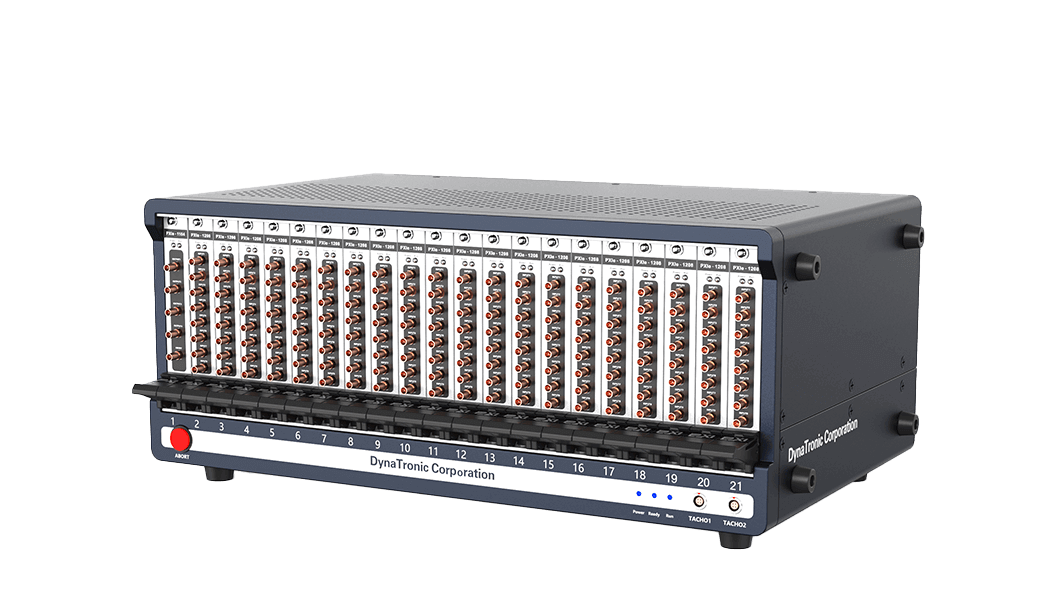

VESSTA MIMO Vibration controller is based on PXIe Bus and DSP board Structure, by the combination of different data acquisition card and output interface card, it can realize large-scale-channel distributed data acquisition, centralized processing, one-way transmission speed is up to 250 MB/s, it can ensure the multichannel parallel acquisition and real time closed-loop control.

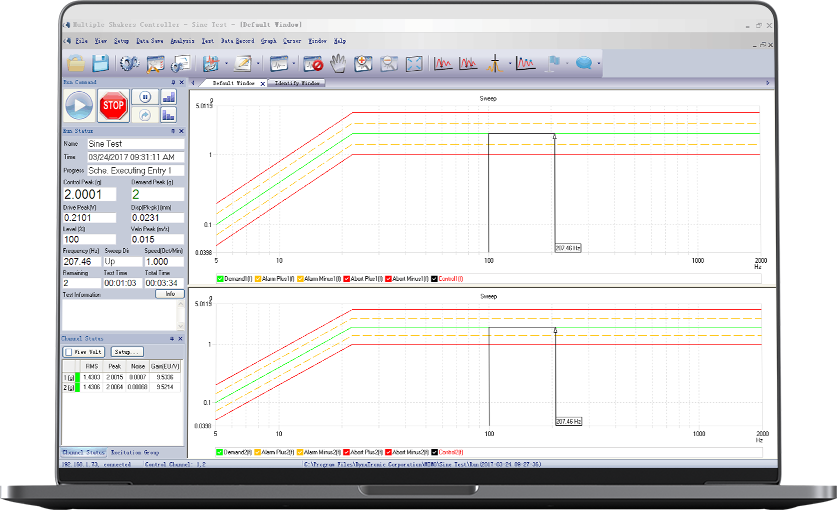

MIMO Sine

The MIMO Sine test is used for multiple shaker excitations on the same specimen. Multiple control points are arranged on the specimen. Each control point can be set with a different sine reference spectrum, and different phase relationships can be set between each reference spectrum.

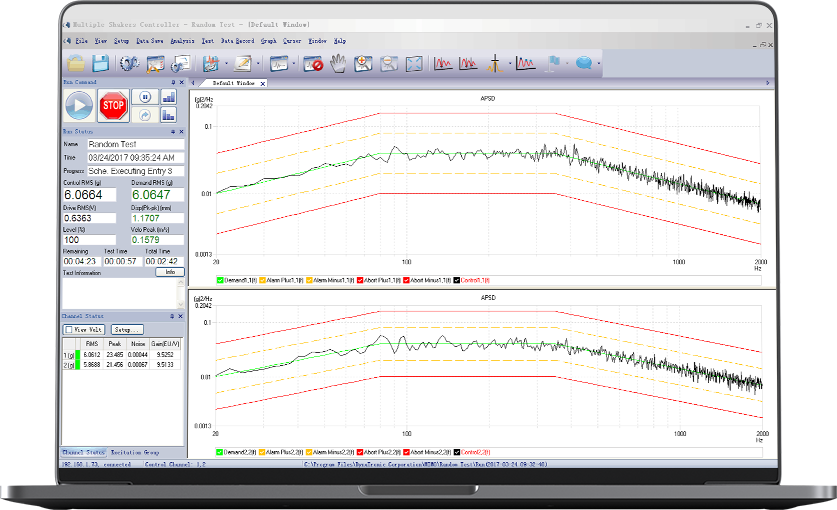

MIMO Random

MIMO Random test is used for multiple shaker excitations, and multiple control points are arranged on the specimen, different random reference spectrum can be set for each control point, The software automatically checks the rationality of the coherence and phase settings.

MIMO Shock

The MIMO classical shock test is used used for multiple shaker excitations to act on the same specimen. Multiple control points are arranged on the specimen, and each control point can be set with a different classical shock reference waveform.

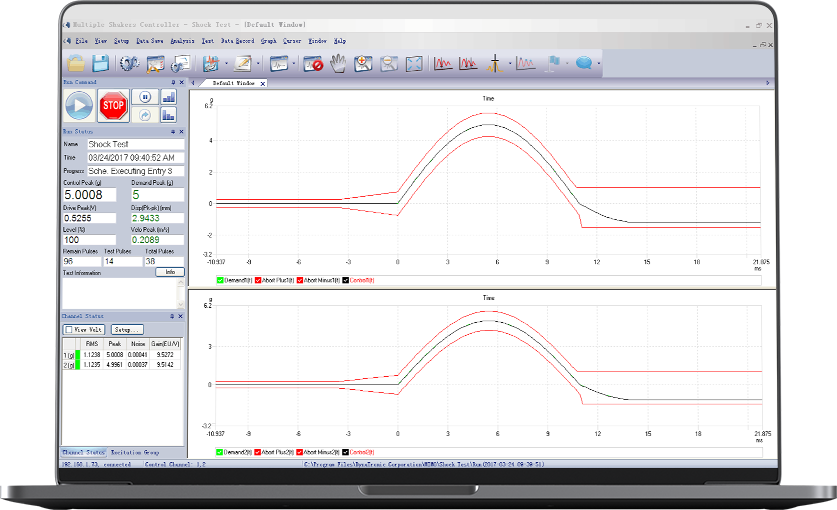

MIMO Field Data Replication

MIMO Field Data Replication is used for multiple shaker excitation to act on the same specimen. Multiple control points are arranged on the specimen, and each control point can be set with a different Field Data Replication reference spectrum. It is imported from the file, which is generally the time-domain waveform collected by the user on site.
