High-Performance Sensors for Vibration & Shock Testing

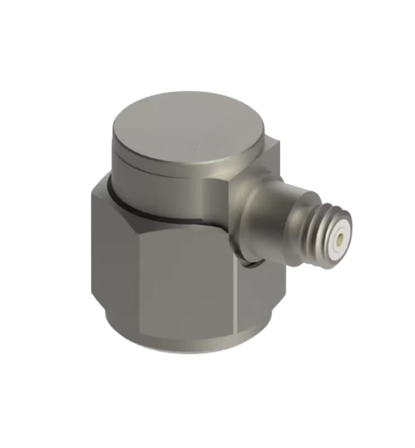

General Purpose Piezoelectric Accelerometers

General-purpose piezoelectric accelerometers provide reliable, cost-effective performance with quick availability, making them well-suited for a broad range of vibration measurement applications. Built for durability and consistent accuracy, they are an excellent choice for general industrial testing, equipment monitoring, and routine vibration diagnostics.

General Purpose Piezoelectric Accelerometers

Type Number	DA1005-7	DA1005-13	DA1005-20	DA1005M-7	DA1005M-13	DA1005M-20	DA1008	DA1014
Description	High temperature	High temperature	High temperature	Lateral Line, Integrated cable output	Lateral Line, Integrated cable output	Lateral Line, Integrated cable output	General purpose vibration measurements	Wide bandwidth
Sensitivity	7 pC/g	13 pC/g	20 pC/g	7 pC/g	13 pC/g	20 pC/g	12 pC/g	5.6 pC/g
Weight	10 g	10 g	10 g	10 g	10 g	10 g	16 g	8 g
Sinusoidal limit	3000 g	2000 g	1000 g	3000 g	2000 g	1000 g	1000 g	4000 g
Shock limit	10000 g	10000 g	10000 g	10000 g	10000 g	10000 g	2000 g	10000 g
Frequency Response (±10%)	1 - 12000 Hz	1 - 10000 Hz	1 - 6000 Hz	1 - 12000 Hz	1 - 10000 Hz	1 - 6000 Hz	1 - 9000 Hz	1 - 10000 Hz
Temperature Range	-55 ~ 260 ℃	-55 ~ 260 ℃	-55 ~ 260 ℃	-55 ~ 260 ℃	-55 ~ 260 ℃	-55 ~ 260 ℃	-55 ~ 175 ℃	-70 ~ 260 ℃
Electrical Connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	BNC Coaxial connector	BNC Coaxial connector	BNC Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector
Signal/ground isolation	Yes	Yes	Yes	Yes	Yes	Yes	No	Yes
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	No	Yes
Mounting Method	Screw	Screw	Screw	Screw	Screw	Screw	Stud	Stud
Dimension	16.6×15.32×8.4 mm	16.6×15.32×8.4 mm	16.6×15.32×8.4 mm	34×15.2×8.4 mm	34×15.2×8.4 mm	34×15.2×8.4 mm	14.3×14.3×16.8 mm	18×11.1×14.1 mm

General Purpose Piezoelectric Accelerometer

Type Number	DA1015	DA1016-13	DA1016-20	DA1016-30	DA1019	DA1020-20	DA1020-30	DA1020-50	DA1022
Description	Wide bandwidth, High temperature	Stable Temperature Response	Stable Temperature Response	Stable Temperature Response	General Purpose vibration measurements	General Purpose vibration measurements	General purpose vibration measurements	General purpose vibration measurements	Compact Integrated cable output
Sensitivity	5.6 pC/g	13 pC/G	20 pC/g	30 pC/g	5.6 pC/g	20 pC/g	30 pC/g	50 pC/g	5 pC/g
Weight	8 g	16 g	16 g	16 g	6.5 g	23 g	23 g	23 g	6 g
Sinusoidal limit	4000 g	2000 g	1200 g	800 g	3000 g	1200 g	800 g	500 g	2000 g
Shock limit	10000 g	10000 g	10000 g	10000 g	10000 g	8000 g	8000 g	8000 g	5000 g
Frequency Response (±10%)	1 - 10000 Hz	1 - 10000 Hz	1 - 9000 Hz	1 - 7000 Hz	1 - 6000 Hz	1 - 9000 Hz	1 - 7000 Hz	1 - 6000 Hz	1 - 8000 Hz
Temperature Range	-70 ~ 260 ℃	-70 ~ 260 ℃	-70 ~ 260 ℃	-70 ~ 260 ℃	-55 ~ 200 ℃	-70 ~ 260 ℃	-70 ~ 260 ℃	-70 ~ 260 ℃	-70 ~ 260 ℃
Electrical Connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	BNC/10-32 Coaxial connector
Signal/ground isolation	Yes	No	No	No	Yes	No	No	No	Yes
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	Stud	Stud	Stud	Stud	Stud	Stud	Stud	Stud	Stud/Adhesive
Dimension	11.1x11.1x19 mm	21.7x15x17.5 mm	21.7x15x17.5 mm	21.7x15x17.5 mm	11.1x11.1x15.8 mm	22.5x16x20.6 mm	22.5x16x20.6 mm	22.5x16x20.6 mm	27.4x9.8x8.8 mm

General Purpose Piezoelectric Accelerometer

Type Number	DA1022A	DA1022B	DA1023	DA1023A	DA7001	DA7002	DA7002A	DA7012
Description	Compact Integrated cable output	Compact Integrated cable output	Top Ext Integrated cable output	Top Ext Integrated cable output	Rugged, General, Purpose	Rugged, General, Purpose	Rugged, General, Purpose	Rugged, General, Purpose
Sensitivity	5 pC/g	5 pC/g	6 pC/g	6 pC/g	10 pC/g	5 pC/g	5 pC/g	50 pC/g
Weight	6 g	6 g	8 g	8 g	12 g	15 g	15 g	36 g
Sinusoidal limit	2000 g	2000 g	2000 g	2000 g	500 g	1000 g	1000 g	500 g
Shock limit	5000 g	5000 g	5000 g	5000 g	3000 g	3000 g	3000 g	3000 g
Frequency Response (±10%)	1 - 8000 Hz	1 - 8000 Hz	1 - 9000 Hz	1 - 9000 Hz	1 - 12000 Hz	0.5 - 14000 Hz	0.5 - 14000 Hz	1 - 10000 Hz
Temperature Range	-70 ~ 260 ℃	-70 ~ 260 ℃	-70 ~ 260 ℃	-70 ~ 260 ℃	-55 ~ 200 ℃	-55 ~ 180 ℃	-55 ~ 180 ℃	-40 ~ 120 ℃
Electrical Connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	10-32 Coaxial connector	10-32/M5 Coaxial connector	10-32/M5 Coaxial connector	10-32 Coaxial connector
Signal/ground isolation	No	No	No	No	No	No	No	No
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	Integrated stud	With insulated base	Stud/Adhesive	With insulated base	Screw	Screw	M5	Screw
Dimension	28x10x10 mm	28x10x10 mm	10x10x30.7 mm	10x10x30.7 mm	11x11x22.5 mm	12x12x27 mm	12x12x27 mm	23.3x36.8x20.5 mm

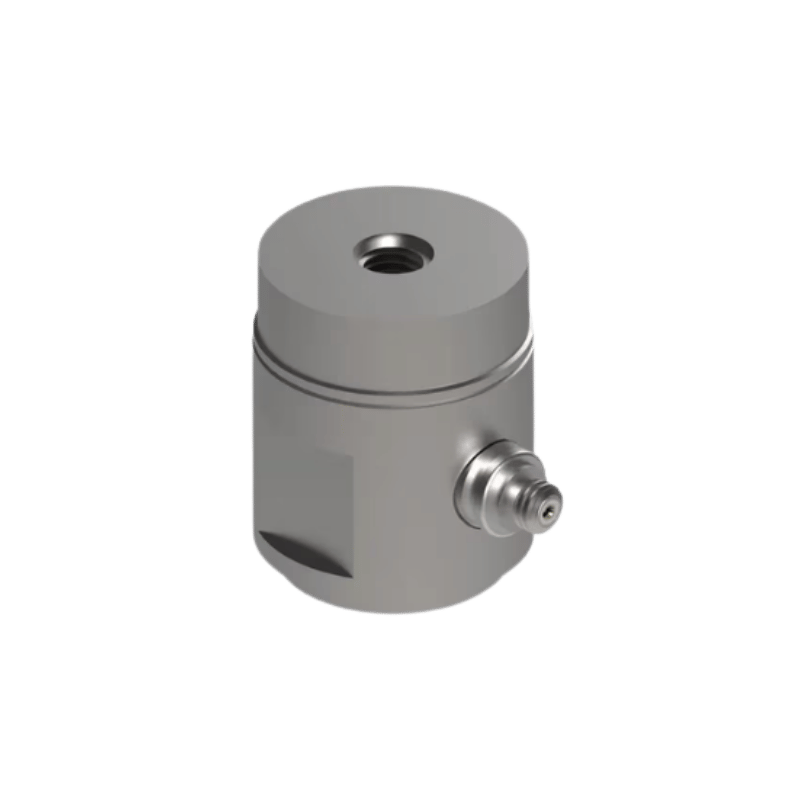

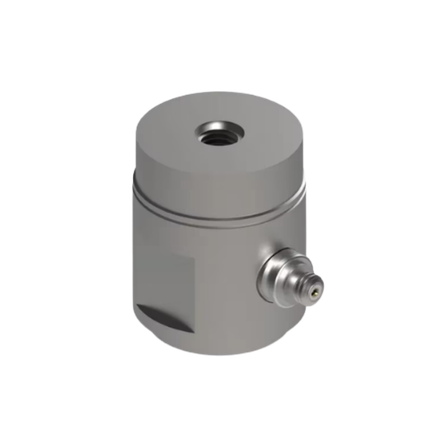

IEPE Accelerometers

IEPE accelerometers deliver stable and dependable vibration measurement with a cost-efficient design and quick availability. With integrated signal conditioning and high shock resistance, they are well-suited for general-purpose vibration monitoring in industrial machinery, structural testing, and a wide range of dynamic measurement applications.

IEPE Accelerometers

Type Number	DA3005A-10	DA3005A-50	DA3005A-100	DA3005M-10	DA3005M-50	DA3005M-100	DA3007B-100	DA3010-10	DA3010-50	DA3010-100
Description	Wide bandwidth	Wide bandwidth	Wide bandwidth	Lateral Line, Integrated cable output	Lateral Line, Integrated cable output	Lateral Line, Integrated cable output	Microminiature IEPE accelerometer	Side Exit	Side Exit	Side Exit
Sensitivity	10 mV/g	50 mV/g	100 mV/g	10 mV/g	50 mV/g	100 mV/g	100 mV/g	10 mV/g	50 mV/g	100 mV/g
Weight	12 g	12 g	12 g	12 g	12 g	12 g	1.5 g (max)	25 g	25 g	25 g
Sinusoidal limit	±500 g	±100 g	±50 g	±500 g	±100 g	±50 g	±500 g	±500 g	±100 g	±50
Shock limit	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g	±10000 g	5000 g	5000 g	5000 g
Frequency Response (±10%)	0.5 - 15000 Hz	0.5 - 15000 Hz	0.5 - 15000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz	2.5 – 8,000 Hz	(±2 dB) 0.5 - 10000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz
Temperature Range	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ +125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃
Electrical Connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	BNC Coaxial connector	BNC Coaxial connector	BNC Coaxial connector	10-32 Coaxial Connector	3-pin connector	3-pin connector	3-pin connector
Signal/ground isolation	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	Screw	Screw	Screw	Screw	Screw	Screw	Stud / Adhesive	Screw	Screw	Screw
Dimension	22.4x15.2x9.8 mm	22.4x15.2x9.8 mm	22.4x15.2x9.8 mm	33x16x23.3 mm	33x16x23.3 mm	33x16x23.3 mm	9.2 × 4.6 × 7.3 mm	26.7x21x13.2 mm	26.7x21x13.2 mm	26.7x21x13.2 mm

IEPE Accelerometer

Type Number	DA3014-5	DA3014-10	DA3014-20	DA3014-50	DA3014-100	DA3015-5	DA3015-10	DA3015-20	DA3015-50	DA3015-100
Description	Rugged, Lightweight, Side exit	Rugged, Lightweight, Side exit	Rugged, Lightweight, Side exit	Rugged, Lightweight, Side exit	Rugged, Lightweight, Side exit	Rugged, Lightweight, Top exit	Rugged, Lightweight, Top exit	Rugged, Lightweight, Top exit	Rugged, Lightweight, Top exit	Rugged, Lightweight, Top exit
Sensitivity	5 mV/g	10 mV/g	20 mV/g	50 mV/g	100 mV/g	5 mV/g	10 mV/g	20 mV/g	50 mV/g	100 mV/g
Weight	8 g	8 g	8 g	8 g	8 g	7 g	7 g	7 g	7 g	7 g
Sinusoidal limit	±1000 g	±500 g	±250 g	±100 g	±50 g	±1000 g	±500 g	±250 g	±100 g	±50
Shock limit	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g
Frequency Response (±10%)	0.5 - 10000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz
Temperature Range	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃
Electrical Connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector
Signal/ground isolation	No	No	No	No	No	No	No	No	No	No
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive
Dimension	18x11.1x14.1 mm	18x11.1x14.1 mm	18x11.1x14.1 mm	18x11.1x14.1 mm	18x11.1x14.1 mm	11.1x11.1x19 mm	11.1x11.1x19 mm	11.1x11.1x19 mm	11.1x11.1x19 mm	11.1x11.1x19 mm

IEPE Accelerometer

Type Number	DA3016-50	DA3016-100	DA3016-500	DA3020-100	DA3020-500	DA3020-1000	DA3021A-20	DA3021A-50	DA3021A-100
Description	Rugged, High sensitivity, Top exit	Rugged, High sensitivity, Top exit	Rugged, High sensitivity, Top exit	Rugged, High sensitivity, Top exit	Rugged, High sensitivity, Top exit	Rugged, High sensitivity, Top exit	Lightweight, Miniaturization	Lightweight, Miniaturization	Lightweight, Miniaturization
Sensitivity	50 mV/g	100 mV/g	500 mV/g	100 mV/g	500 mV/g	1000 mV/g	20 mV/g	50 mV/g	100 mV/g
Weight	19 g	19 g	19 g	23 g	23 g	23 g	8 g	8 g	8 g
Sinusoidal limit	±100 g	±50 g	±10 g	±50 g	±10 g	±5 g	±250 g	±100 g	±50 g
Shock limit	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g	4000 g	4000 g	4000 g
Frequency Response (±10%)	1 - 10000 Hz	1 - 9000 Hz	1 - 6000 Hz	1 - 8000 Hz	1 - 5000 Hz	1 - 4000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz
Temperature Range	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃
Electrical Connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector
Signal/ground isolation	No	No	No	No	No	No	No	No	No
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	Stud	Stud	Stud	Stud	Stud	Stud	Stud	Stud	Stud
Dimension	21.7x15x17.5 mm	21.7x15x17.5 mm	21.7x15x17.5 mm	22.5x16x20.6 mm	22.5x16x20.6 mm	22.5x16x20.6 mm	16.9x9.8x12.6 mm	16.9x9.8x12.6 mm	16.9x9.8x12.6 mm

General Purpose Piezoelectric Accelerometer

Type Number	DA3021B-20	DA3021B-50	DA3021B-100	DA3022-20	DA3022-50	DA3022-100	DA3022A-20	DA3022A-50	DA3022A-100
Description	Light weight, Miniaturization	Light weight, Miniaturization	Lightweight, Miniaturization	Lateral Line, Integrated cable output	Lateral Line, Integrated cable output	Lateral Line, Integrated cable output	Lateral Line, Integrated cable output	Lateral Line, Integrated cable output	Lateral Line, Integrated cable output
Sensitivity	20 mV/g	50 mV/g	100 mV/g	20 mV/g	50 mV/g	100 mV/g	20 mV/g	50 mV/g	100 mV/g
Weight	8 g	8 g	8 g	6 g	6 g	6 g	6 g	6 g	6 g
Sinusoidal limit	±250 g	±100 g	±50 g	±250 g	±100 g	±50 g	±250 g	±100 g	±50 g
Shock limit	4000 g	4000 g	4000 g	3000 g	3000 g	3000 g	3000 g	3000 g	3000 g
Frequency Response (±10%)	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz
Temperature Range	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃
Electrical Connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector
Signal/ground isolation	Yes	Yes	Yes	No	No	No	No	No	No
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	isolated mounting studs	isolated mounting studs	isolated mounting studs	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Integrated Stud	Integrated Stud	Integrated Stud
Dimension	16.9x9.8x12.6 mm	16.9x9.8x12.6 mm	16.9x9.8x12.6 mm	27.7x9.8x8.8 mm	27.7x9.8x8.8 mm	27.7x9.8x8.8 mm	27.7x9.8x8.8 mm	27.7x9.8x9.8 mm	27.7x9.8x8.8 mm

IEPE Accelerometer

Type Number	DA3022B-20	DA3022B-50	DA3022B-100	DA3023-20	DA3023-50	DA3023-100	DA3023A-20	DA3023A-50	DA3023A-100	DA3051-10	DA3051-100
Sensitivity	20 mV/g	50 mV/g	100 mV/g	20 mV/g	50 mV/g	100 mV/g	20 mV/g	50 mV/g	100 mV/g	10 mV/g	100 mV/g
Weight	6 g	6 g	6 g	8 g	8 g	8 g	8 g	8 g	8 g	25 g	25 g
Sinusoidal limit	±250 g	±100 g	±50 g	±250 g	±100 g	±50 g	±250 g	±100 g	±50 g	±500 g	±50 g
Shock limit	3000 g	3000 g	3000 g	3000 g	3000 g	3000 g	3000 g	3000 g	3000 g	5000 g	5000 g
Frequency Response (±10%)	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 9000 Hz	0.5 - 9000 Hz	0.5 - 9000 Hz	0.5 - 9000 Hz	0.5 - 9000 Hz	0.5 - 9000 Hz	1 - 10000 Hz	1 - 10000 Hz
Temperature Range	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 130 ℃	-55 ~ 130 ℃
Electrical Connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	BNC/10-32 Coaxial connector	3-pin connector	3-pin connector
Signal/ground isolation	Yes	Yes	Yes	No	No	No	Yes	Yes	Yes	Yes	Yes
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	isolated mounting stud	isolated mounting stud	isolated mounting stud	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	isolated mounting stud	isolated mounting stud	isolated mounting stud	Screw	Screw
Dimension	27.7x9.8x8.8 mm	27.7x9.8x8.8 mm	27.7x9.8x8.8 mm	10x10x30.7 mm	10x10x30.7 mm	10x10x30.7 mm	10x10x28.2 mm	10x10x28.2 mm	10x10x28.2 mm	30x4.2x13.7 mm	30x4.2x13.7 mm

IEPE Accelerometer

Type Number	DA7102-10	DA7102-100	DA7103-10	DA7103-100	DA7112-50	DA7112-100	DA7112-500
Description	Rugged, Light weight, Side Exit	Rugged, Light weight, Side Exit	Rugged, Light weight, Side Exit	Rugged, Light weight, Side Exit	Rugged, Light weight, Side Exit	Rugged, Light weight, Side Exit	Rugged, Light weight, Side Exit
Sensitivity	10 mV/g	100 mV/g	10 mV/g	100 mV/g	50 mV/g	100 mV/g	500 mV/g
Weight	16 g	16 g	21 g	21 g	36 g	36 g	36 g
Sinusoidal limit	±500 g	±50 g	±500 g	±50 g	±100 g	±50 g	±10 g
Shock limit	2000 g	2000 g	2000 g	2000 g	2000 g	2000 g	2000 g
Frequency Response (±10%)	1 - 8000 Hz	1 - 8000 Hz	1 - 8000 Hz	1 - 8000 Hz	1 - 9000 Hz	1 - 9000 Hz	1 - 9000 Hz
Temperature Range	-55 ~ 120 ℃	-55 ~ 120 ℃	-50 ~ 120 ℃	-50 ~ 120 ℃	-40 ~ 100 ℃	-40 ~ 100 ℃	-40 ~ 100 ℃
Electrical Connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector
Signal/ground isolation	No	No	No	No	No	No	No
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	Stud	Stud	Stud	Stud	Stud	Stud	Stud
Dimension	11x11x22.5 mm	11x11x22.5 mm	18x12x20 mm	18x12x20 mm	23.3x16.8x22.5 mm	23.3x16.8x22.5 mm	23.3x16.8x22.5 mm

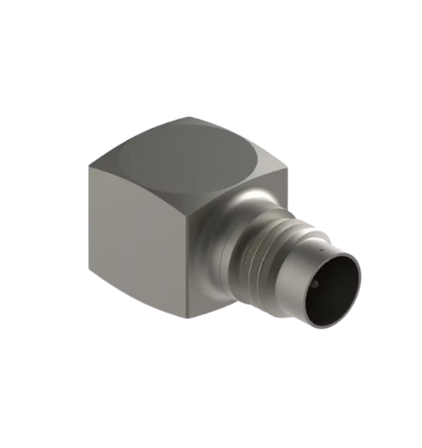

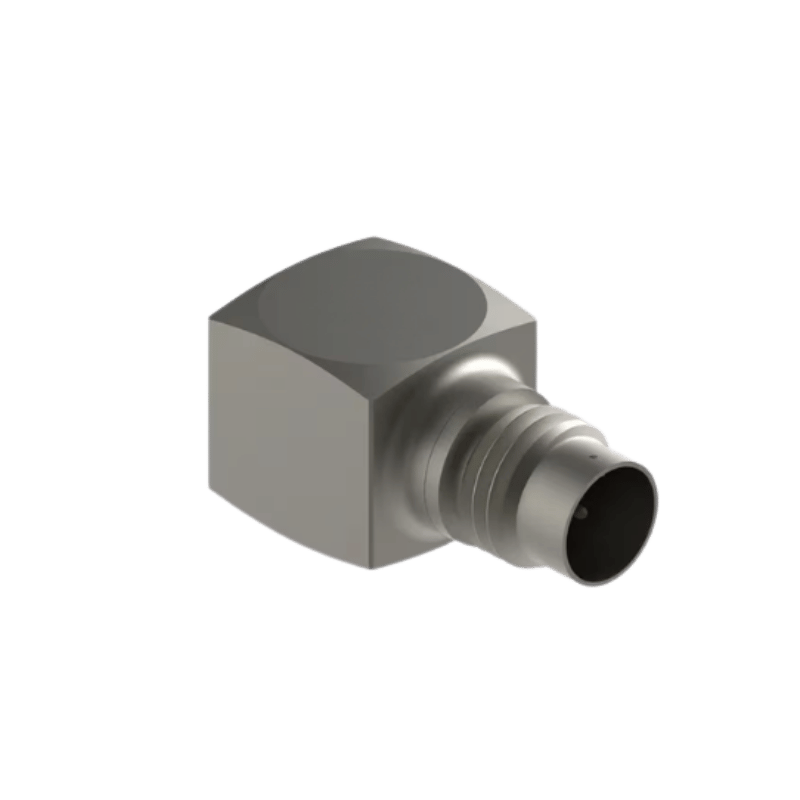

Miniature IEPE Accelerometers

Miniature IEPE accelerometers are compact, high-performance vibration sensors designed for precise acceleration measurement in applications where space, weight, and mass loading are critical. Despite their small size, they deliver reliable, high-quality vibration data across a wide frequency range, making them ideal for demanding testing, monitoring, and diagnostic environments. Built using IEPE (Integrated Electronics Piezoelectric) technology, these sensors combine a piezoelectric sensing element with integrated signal conditioning to produce a low-impedance voltage output—reducing noise and signal loss over long cable runs compared to charge-type accelerometers.

Operating on the piezoelectric effect, the sensor generates an electrical charge when subjected to acceleration, which is then converted into a conditioned voltage signal by the built-in electronics. With a simple constant current power supply delivered through the same cable, miniature IEPE accelerometers enable easy setup for multi-channel vibration measurement and portable testing. Combining compact design, durability, and consistent accuracy, they provide dependable performance for industrial testing, field measurements, and precise vibration analysis where traditional sensors may be too large or intrusive.

Key Advantages:

Compact size minimizes mass loading on small or lightweight test objects
High sensitivity with wide frequency response for precise vibration capture
Low noise and excellent linearity for accurate measurements
Strong repeatability for consistent test results over time
Rugged design for reliable use in harsh industrial environments

Applications:

Machinery monitoring: Identify imbalance, misalignment, and bearing issues
Automotive & transportation: Test engines, drivetrains, and structures
Aerospace & defense: Perform structural and modal testing
Electronics & precision equipment: Measure vibration in compact assemblies
Education & research: Support lab testing and vibration studies

Miniature IEPE Accelerometers

Type Number	DA3004-5	DA3004-10	DA3004-100	DA3007-2.5	DA3007-10	DA3007-50	DA3007-100	DA3008-10	DA3008-100
Description	Rugged, Light weight	Rugged, Light weight	Rugged, Light weight	Miniature, Light weight	Miniature, Light weight	Miniature, Light weight	Miniature, Light weight	Hermetic, Light weight	Hermetic, Light weight
Sensitivity	5 mV/g	10 mV/g	100 mV/g	2.5 mV/g	10 mV/g	50 mV/g	100 mV/g	10 mV/g	100 mV/g
Weight	4 g	4 g	4 g	1	1 g	1 g	1 g	3.6 g	3.6 g
Sinusoidal limit	±1000 g	±500 g	±50 g	±2000 g	±500 g	±100 g	±50 g	±500 g	±50 g
Shock limit	5000 g	5000 g	5000 g	10000 g	10000 g	10000 g	10000 g	5000 g	5000 g
Frequency Response (±10%)	0.5 - 10,000 Hz	0.5 - 10,000 Hz	0.5 - 10000 Hz	1 - 10000 g	1 - 10000 Hz	1 - 10000 Hz	1 - 10000 Hz	0.5 - 10000 Hz	0.5 - 10000 Hz
Temperature Range	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃
Electrical Connector	M3 Coaxial connector	M3 Coaxial connector	M3 Coaxial connector	M3 Coaxial connector	M3 Coaxial connector	M3 Coaxial connector	M3 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector
Signal/ground isolation	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	Screw	Screw	Screw	Adhesive	Adhesive	Adhesive	Adhesive	Adhesive	Adhesive
Dimension	15.2x10.2x6.6 mm	15.2x10.2x6.6 mm	15.2x10.2x6.6 mm	12.1x6.6x4.7 mm	12.1x6.6x4.7 mm	12.1x6.6x4.7 mm	12.1x6.6x4.7 mm	9.5x9.5x10.3 mm	9.5x9.5x10.3 mm

Miniature IEPE Accelerometers

Type Number	DA3009-10	DA3009-100	DA3021-20	DA3021-50	DA3021-100	DA3053-10	DA3053-100	DA3054-10	DA3054-20	DA3054-50	DA3054-100
Sensitivity	10 mV/g	100 mV/g	20 mV/g	50 mV/g	100 mV/g	10 mV/g	100 mV/g	10 mV/g	20 mV/g	50 mV/g	100 mV/g
Weight	5 g	5 g	5 g	5 g	5 g	6 g	6 g	5 g	5 g	5 g	5 g
Sinusoidal limit	±500 g	±50 g	±250 g	±100 g	±50 g	±50 g	±10 g	±500 g	±250 g	±100 g	±50 g
Shock limit	5000 g	5000 g	4000 g	4000 g	4000 g	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g
Frequency Response (±10%)	0.5 - 10,000 Hz	0.5 - 10,000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 9000 Hz	0.5 - 9000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz	0.5 - 8000 Hz
Temperature Range	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃
Electrical Connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector
Signal/ground isolation	Yes	Yes	No	No	No	No	No	No	No	No	No
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	Stud	Stud	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive
Dimension	11.1x11.1x15.7mm	11.1x11.1x15.7mm	15.2x10.2x6.6mm	16.9x9.8x8.8mm	16.9x9.8x8.8mm	17.3x10.2x10.2mm	17.3x10.2x10.2mm	17.2x10x9.7mm	17.2x10x9.7mm	17.2x10x9.7mm	17.2x10x9.7mm

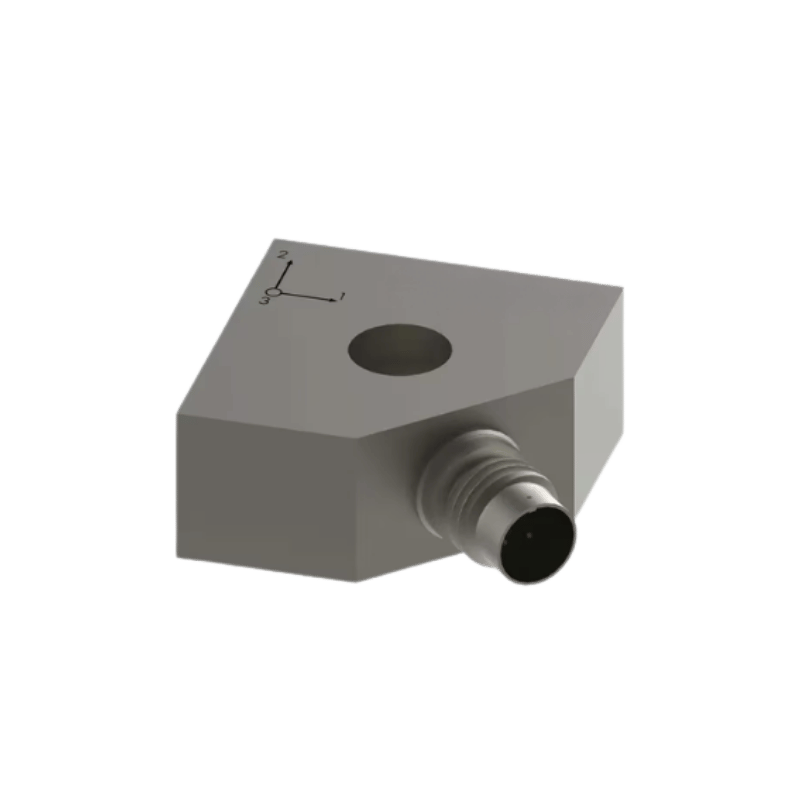

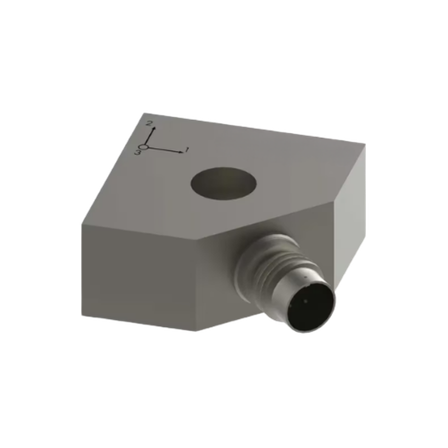

Triaxial IEPE Accelerometers

Triaxial IEPE accelerometers are advanced vibration sensors that measure acceleration across three orthogonal axes (X, Y, and Z) simultaneously. By capturing multi-directional vibration data from a single mounting point, they provide a complete and accurate view of dynamic behavior—making them ideal for vibration testing, structural analysis, and condition monitoring. Compared to single-axis accelerometers, they remove the need for multiple sensors and repeated setups, reducing installation time and measurement uncertainty while ensuring all directional data is captured under the same conditions for higher data integrity.

Built on the piezoelectric effect with integrated IEPE signal conditioning, each axis contains its own sensing element that generates an electrical charge proportional to acceleration, which is then converted into a low-impedance voltage signal. With power and signal transmitted through a single cable using a constant current supply, setup is simplified and noise is minimized—especially in multi-channel systems. Combining synchronized three-axis measurement, compact design, and reliable performance, triaxial IEPE accelerometers deliver efficient, high-quality vibration insights for testing, diagnostics, and validation in complex dynamic environments.

Key Advantages:

3-axis measurement from one point for aligned, correlated data
High sensitivity with wide frequency response
Strong axis matching for consistent results
Low cross-axis interference (rigid, compact build)
Stable under vibration, temperature, and stress
Suitable for lab and industrial use

Applications:

Modal & structural: Multi-directional vibration analysis
Machinery: Detect faults (imbalance, misalignment, bearings)
Automotive: Test engines, suspensions, structures
Aerospace: Qualification and flight vibration analysis
Electronics: Test small, sensitive assemblies

Triaxial IEPE Accelerometers

Type Number	DA3301-10	DA3301-50	DA3301-100	DA3302A-10	DA3302A-20	DA3302A-50	DA3302A-100
Description	High Frequency, triaxial	High Frequency, triaxial	High Frequency, triaxial	Triaxial, miniature	Triaxial, miniature	Triaxial, miniature	Triaxial, miniature
Sensitivity	10 mV/g	50 mV/g	100 mV/g	10 mV/g	20 mV/g	50 mV/g	100 mV/g
Weight	17 g	17 g	17 g	4.5 g	4.5 g	4.5 g	4.5 g
Sinusoidal limit	±500 g	±100 g	±50 g	±500 g	±250 g	±100 g	±50 g
Shock limit	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g
Frequency Response (±10%)	0.5 - 9,000 Hz	0.5 - 9,000 Hz	0.5 - 9000 Hz	2.5 - 7000 Hz	2.5 - 7000 Hz	2.5 - 7000 Hz	2.5 - 7000 Hz
Temperature Range	-55 ~ 125 ℃	-55 ~125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃
Electrical Connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector
Signal/ground isolation	Yes	Yes	Yes	No	No	No	No
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	Screw	Screw	Screw	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive
Dimension	23.2x23.2x16.1 mm	23.2X23.2X16.1 mm	23.2x23.2x16.1 mm	18.6x11x11 mm	18.6x11x11 mm	18.6X11X11 mm	18.6x11x11 mm

Triaxial IEPE Accelerometers

Type Number	DA3303-10	DA3303-20	DA3303-50	DA3303-100	DA3305-10	DA3305-25	DA3305-50	DA3305-100
Description	Triaxial, miniature	Triaxial, miniature	Triaxial, miniature	Triaxial, miniature	Triaxial 360° cable orientation signal isolated to case	Triaxial 360° cable orientation signal isolated to case	Triaxial 360° cable orientation signal isolated to case	Triaxial 360° cable orientation signal isolated to case
Sensitivity	10 mV/g	20 mV/g	50 mV/g	100 mV/g	10 mV/g	25 mV/g	50 mV/g	100 mV/g
Weight	4.5 g	4.5 g	4.5 g	4.5 g	12 g	12 g	12 g	12 g
Sinusoidal limit	±500 g	±250 g	±100 g	±50 g	±500 g	±200 g	±100 g	±50 g
Shock limit	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g
Frequency Response (±10%)	2.5 - 7,000 Hz	2.5 - 7,000 Hz	2.5 - 7000 Hz	2.5 - 7000 Hz	1 - 8000 Hz	1 - 8000 Hz	1.5 - 7000 Hz	2.5 - 7000 Hz
Temperature Range	-55 ~ 125 ℃	-55 ~125 ℃	-55 ~125 ℃	-55 ~125 ℃	-55 ~125 ℃	-55 ~125 ℃	-55 ~125 ℃	-55 ~125 ℃
Electrical Connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector
Signal/ground isolation	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Hermetic Seal	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mounting Method	Adhesive	Adhesive	Adhesive	Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive
Dimension	20x12x12 mm	20X12X12 mm	20x12x12 mm	20x12x12 mm	28.4x20.8x10.2 mm	28.4x20.8x10.2 mm	28.4x20.8x10.2 mm	28.4x20.8x10.2 mm

Triaxial IEPE Accelerometers

Type Number	DA3306-2.5	DA3306-10	DA3306-50	DA3306-100	DA3307-10	DA3307-25	DA3307-50	DA3307-100
Description	Triaxial, High sensitivity	Triaxial, High sensitivity	Triaxial, High sensitivity	Triaxial, High sensitivity	Triaxial, screw installation	Triaxial, screw installation	Triaxial, screw installation	Triaxial, screw installation
Sensitivity	2.5 mV/g	10 mV/g	50 mV/g	100 mV/g	10 mV/g	25 mV/g	50 mV/g	100 mV/g
Weight	15 g	15 g	15 g	15 g	12 g	12 g	12 g	12 g
Sinusoidal limit	±2000 g	±500 g	±100 g	±50 g	±500 g	±200 g	±100 g	±50 g
Shock limit	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g	5000 g
Frequency Response (±10%)	1 - 8,000 Hz	1 - 8,000 Hz	1 - 8000 Hz	1 - 7000 Hz	2.5 - 7000 Hz	2.5 - 7000 Hz	2.5 - 7000 Hz	1 - 8000 Hz
Temperature Range	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃
Electrical Connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector
Signal/ground isolation	No	No	No	No	No	No	No	No
Hermetic Seal	Yes	Yes	Yes	Yes	No	No	No	No
Mounting Method	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Adhesive/Screw	Adhesive/Screw	Adhesive/Screw	Adhesive/Screw
Dimension	24.3x14.5x15.2 mm	24.3x14.5x15.2 mm	24.3x14.5x15.2 mm	24.3x14.5x15.2 mm	29.7x28.3x10 mm	29.7x28.3x10 mm	29.7x28.3x10 mm	29.7x28.3x10 mm

Triaxial IEPE Accelerometers

Type Number	DA3308-50	DA3308-100	DA3308-500	DA1010	DA1301	DA3302B-10	DA3302B-20	DA3302B-50	DA3302B-100
Description	Reinforced triaxial, Screw installation	Reinforced triaxial, Screw installation	Reinforced triaxial, Screw installation	Triaxial charge output	Triaxial charge output	Triaxial, miniature	Triaxial, miniature	Triaxial, miniature	Triaxial, miniature
Sensitivity	50 mV/g	100 mV/g	500 mV/g	3 pC/g	5.6 pC/g	10 mV/g	20 mV/g	50 mV/g	100 mV/g
Weight	26 g	26 g	26 g	15 g	15 g	6 g	6 g	6 g	6 g
Sinusoidal limit	±100 g	±50 g	±10 g	± 1000 g	±4000 g	±500 g	±250 g	±100 g	±50 g
Shock limit	5000 g	5000 g	5000 g	2000 g	10000 g	5000 g	5000 g	5000 g	5000 g
Frequency Response (±10%)	0.5 - 8,000 Hz	0.5 - 8,000 Hz	0.5 - 8000 Hz	1 - 5000 g	0.3 - 6000 Hz	2.5 - 7000 Hz	2.5 - 7000 Hz	2.5 - 7000 Hz	2.5 - 7000 Hz
Temperature Range	-55 ~ 125 ℃	-55 ~125 ℃	-55 ~ 125 ℃	-55 ~ 175 ℃	-70 ~ 200 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃	-55 ~ 125 ℃
Electrical Connector	4-pin connector	4-pin connector	4-pin connector	10-32 Coaxial connector	10-32 Coaxial connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector	1/4-28 UNF 4-pin connector
Signal/ground isolation	No	No	No	Yes	Yes	No	No	No	No
Hermetic Seal	Yes	Yes	Yes	No	Yes	Yes	Yes	Yes	Yes
Mounting Method	Screw	Screw	Screw	Screw	Screw	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive	Stud/Adhesive
Dimension	29x34.7x14 mm	29x34.7x14 mm	29x34.7x14 mm	22.9x22.9x15.8 mm	23.2x23.2x16.1 mm	18.6x11x11 mm	18.6x11x11 mm	18.6x11x11 mm	18.6x11x11 mm

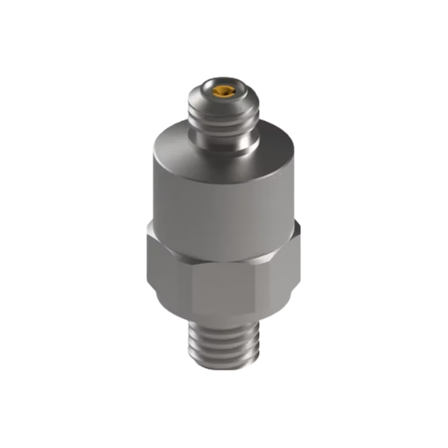

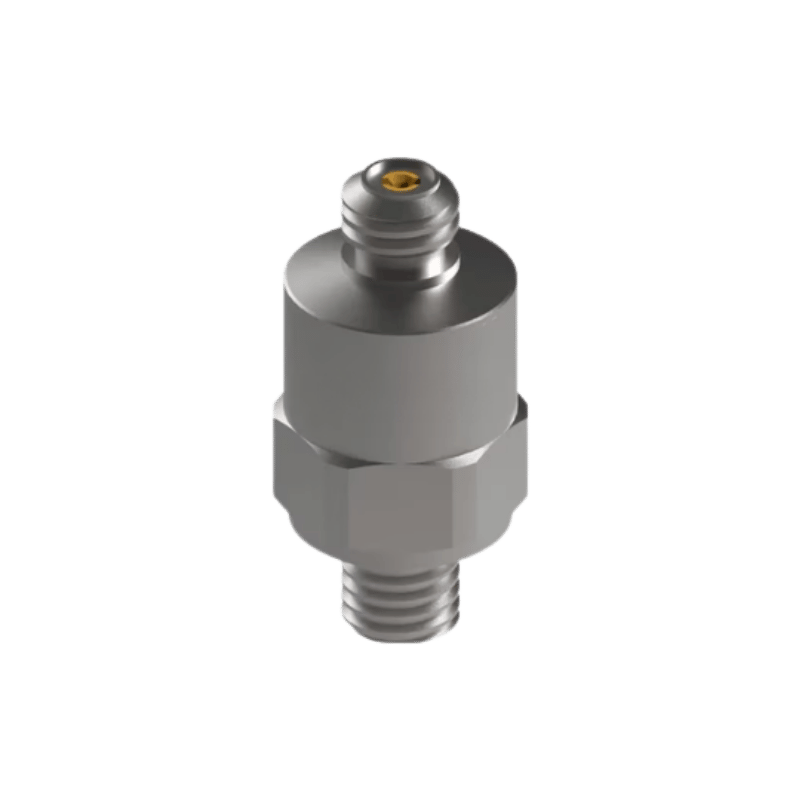

Shock Sensors

Shock sensors are specialized devices designed to measure high-magnitude, short-duration acceleration events—known as mechanical shock—caused by impacts, drops, collisions, explosions, or sudden motion changes. Unlike standard vibration sensors, they are built to withstand and accurately capture extreme acceleration peaks (often hundreds or thousands of g) without signal saturation or damage. This makes them essential for analyzing peak loads, impact severity, and transient response in applications where safety, reliability, and design validation are critical. Typical use cases include drop and impact testing, transportation shocks, pyrotechnic events, and sudden mechanical stops, all of which require sensors with very high bandwidth, fast response, and strong overload resistance.

Most shock sensors use piezoelectric technology, generating an electrical charge proportional to the applied acceleration. This approach offers the stiffness and speed needed to capture rapid events, while some designs incorporate mechanical filtering or damping to ensure accurate peak measurement during extreme impacts. By providing precise shock data, these sensors help engineers identify failure thresholds, validate protective designs, improve system reliability, and support advanced diagnostics and optimization.

Key Advantages:

High g-range for extreme acceleration measurement
Wide frequency response for fast transients
Fast rise-time for accurate shock capture
Rugged build for repeated high-impact events
Compact design for direct mounting without data loss

Applications:

Shock & drop testing: Validate durability and packaging
Aerospace & defense: Measure pyrotechnic and mechanical shock
Automotive: Analyze crash and impact events
Electronics: Assess handling and damage risk
Military & research: Study shock behavior and response

shock sensors

Type Number	DA6001	DA6002	DA6003
Description	High g shock, charge output	High g shock, charge output	High g shock, charge output
Sensitivity	2 pC/g	0.98 pC/g	0.15 pC/g
Weight	6 g	13 g	4 g
Shock Limit	20,000 g	50,000 g	100,000 g
Frequency Response (± 10%)	1 - 9,000 Hz	1 - 10,000 Hz	1 - 10,000 Hz
Temperature Range	-55 - 100 ℃	-55 - 175 ℃	-55 - 100 ℃
Connector	10-32 Coaxial connector	10-32 Coaxial connector	10-32 Coaxial connector
Signal/ground isolation	No	No	No
Hermetic seal	No	No	Yes
Mounting Method	Stud	Stud	Stud
Dimension	11×11×21.6 mm	14.3×14.3×16.8 mm	12×12×10 mm

Get in Touch with Us

Have questions or need assistance? We’re here to help.

ROOM 401, 4/F., WANCHAI CENTRAL BUILDING, 89 LOCKHART ROAD, WAN CHAI, HONG KONG

sales@dtc-solutions.com
